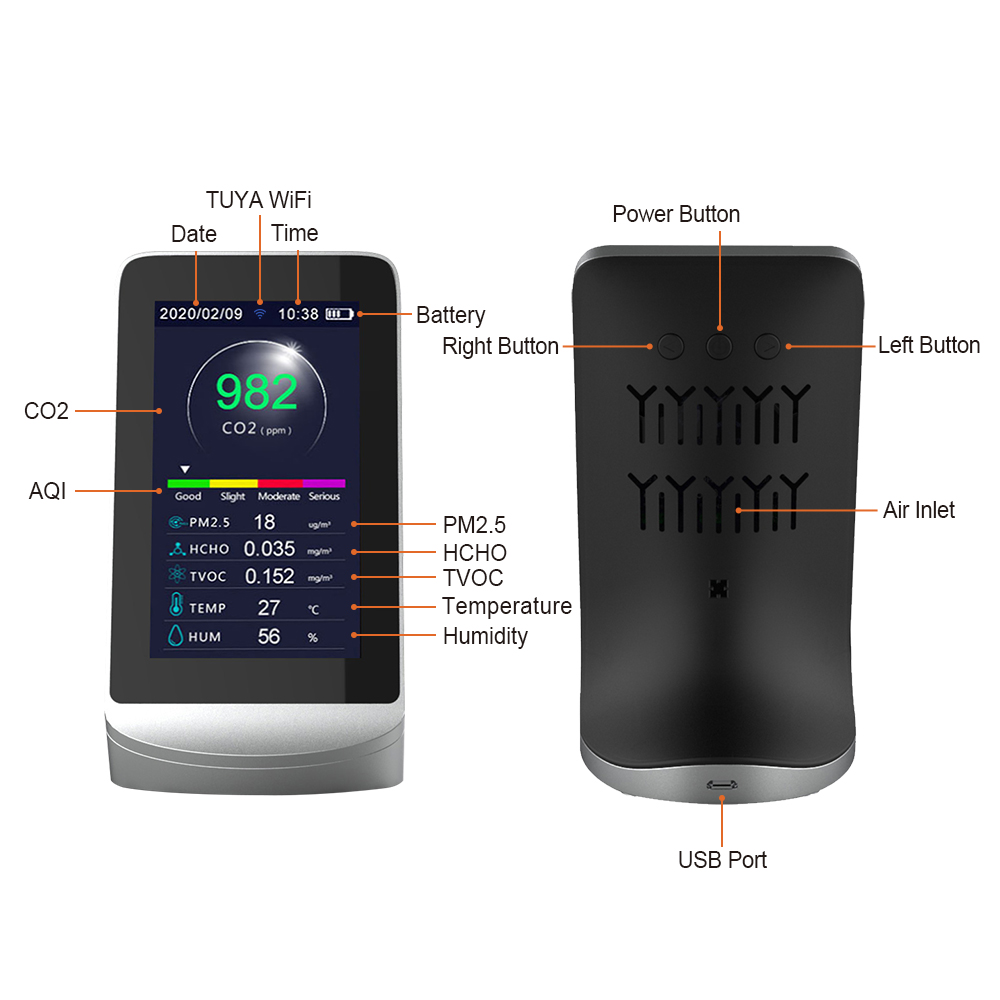

VM72B-WiFi Air Quality Monitor
All-in-One CO₂, Temperature & Humidity Detection
Integrates real-time monitoring of CO₂ concentration, temperature, and humidity using a high-precision NDIR infrared sensor with auto-calibration for accurate long-term performance.

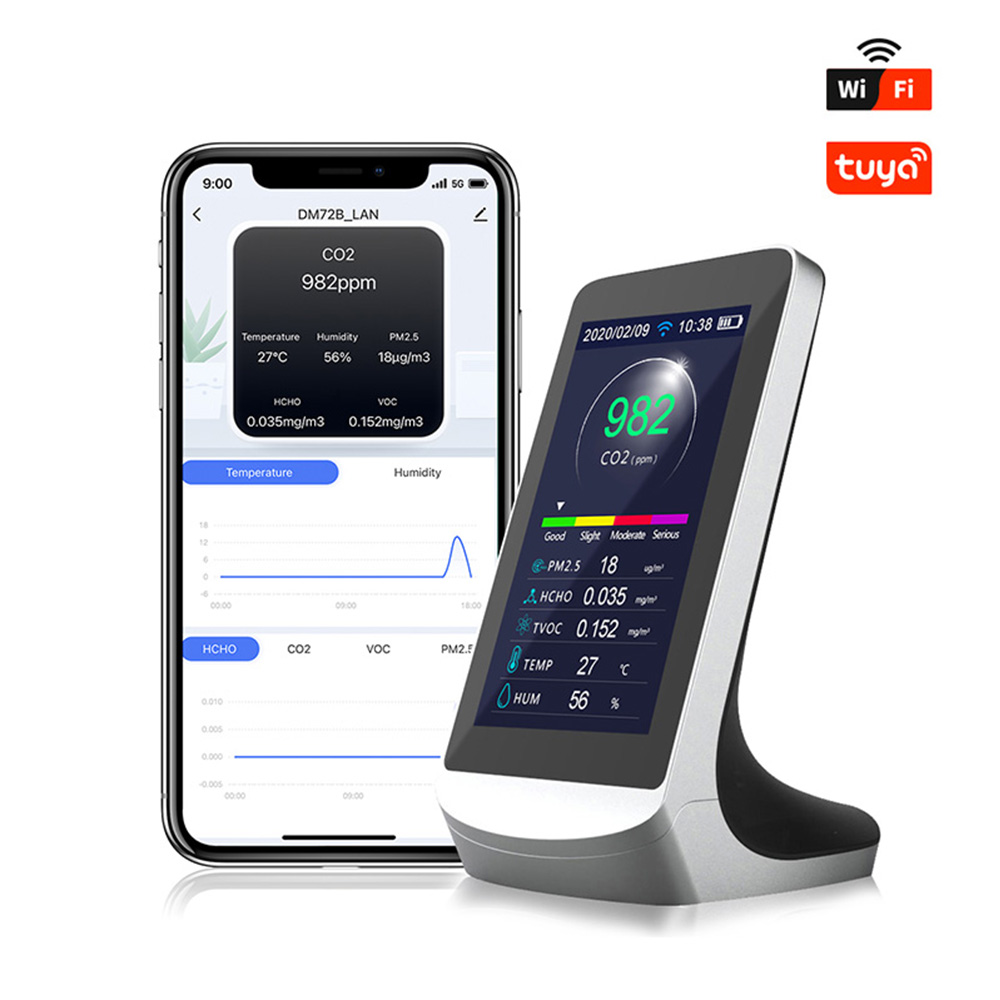

Smart Wireless Monitoring via TUYA App
Supports WiFi connection and data synchronization with the TUYA App, allowing you to remotely track CO₂ levels and environmental data on your smartphone anytime, anywhere.
Historical Data Logging & Temperature Offset
Built-in memory automatically records historical air quality data. Supports temperature offset adjustment to meet specific usage needs.
Visual & Audible CO₂ Alerts
Color LED indicators change with CO₂ concentration levels. When the value exceeds the set threshold, the device automatically triggers an alarm. The buzzer can be manually turned on/off as needed.
Auto Detection & Reliable Alerts
Continuously measures and detects air quality conditions. When exceeding set limits, the system initiates warnings to help you optimize ventilation and ensure a healthy indoor environment
| model |
WiFi model |
|---|
-
Product Size: 188 × 42 × 88 mm
-
Product Weight: 330g
-
Measured Parameters: CO₂, PM2.5, PM10, HCHO, TVOC, AQI, Temperature, Humidity, Clock
-
Sensor Types: NDIR CO₂ sensor, laser dust sensor, semiconductor sensor, electrochemical sensor, temperature and humidity sensor
-
PM2.5/PM10 Measuring Range: 0 ~ 999 μg/m³
-

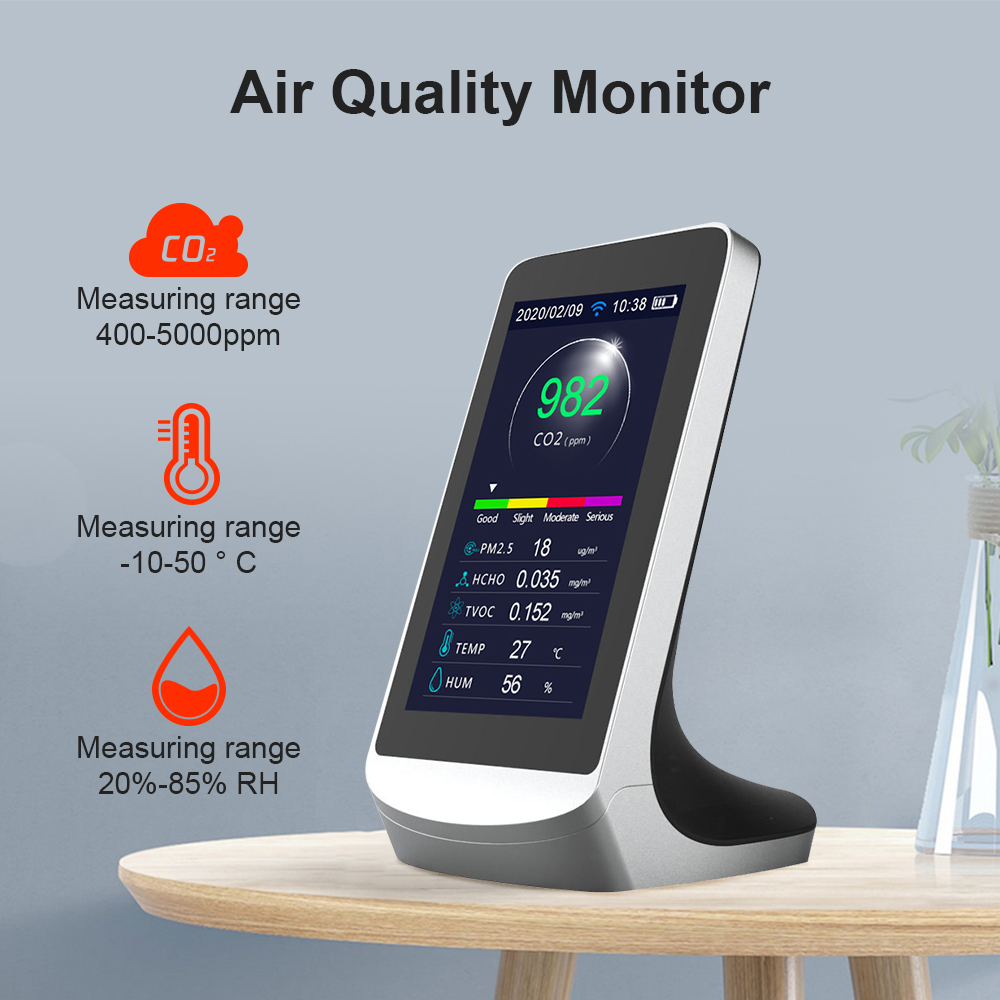

CO₂ Measuring Range: 400 ~ 5000 ppm
-
HCHO Measuring Range: 0 ~ 1.999 mg/m³
-
TVOC Measuring Range: 0 ~ 9.99 mg/m³
-
Working Humidity: ≤ 90% RH
-
Power Supply: Built-in 2000mAh lithium battery
-
Charging Interface: Micro USB, 5V DC / 1A
-
WiFi App Support: Tuya Smart, Smart Life
